1.CNC Router Features
1. ACE-1325 type engraving machine is a highly cost-effective generic machine, the main
parts are adopted imported or joint venture brand accessorries
2. Vacuum Table With T-slot Combined ,Vacuum table , high power can sorb different sizes materials.
3. High speed, high efficiency, engraving speed can be up to 18 000m / min or more.
Smooth bottom and clear contour.
4.NC-studio/DSP /Mach3 control system,Artcam design software
5.Option dust collector equipped in machine,keep the working table clean enough.
2.Technical Parameters
Model | ACE 1325 with 2 spindle heads |
X,Y,Z Working Area | 1300x2500x200mm |
Working delicasy | 0.01-0.025mm |
X,Y,Z repositioning Positioning Accuracy | ±0.05mm |
Frame | heavy duty steel tube structure |
X.Y .Z Structure | Hiwin Rail Linear Bearings and Ball Screw |
Table surface | Vacuum table with t-slot combined |
Max. power Consumption | 3.2KW*2 Water cooling spindle |
Max.Rapid Travel Rate | 33000mm/min |
Max.Working Speed | 25000mm/min |
Spindle Speed | 0-24000RPM |
Drive Motors | Stepper system ( servo motor optional) |
Working Voltage | AC220V/50/60Hz |
Command Language | G code |
Control System: | Ncstudion / DSP /Mach 3 |
X,Y Resolution | <0.01mm |
Surrounding for software | Winds xp /Win7 8 10 |
Running Environment | Temperature: 0-45°C Relative humidity: 30%-75% |
3. Applications Materials
1.Woodworking:wooden door and furniture,windows,tables and chairs,cabinets and panels, 3D wave plate,MDF,computer desk,musical instruments,etc
2.Advertising: billboard, logo,sign,3D characters cutting,acrylic cutting,LED/neon channel,literal-hole cut,lightbox mold,stamp,mould
3.Die industry: copper sculpture,aluminum engrave,metal molds,plastic sheeting,PVC,etc
4. WoodWorking CNC Router with two heads Machine Samples

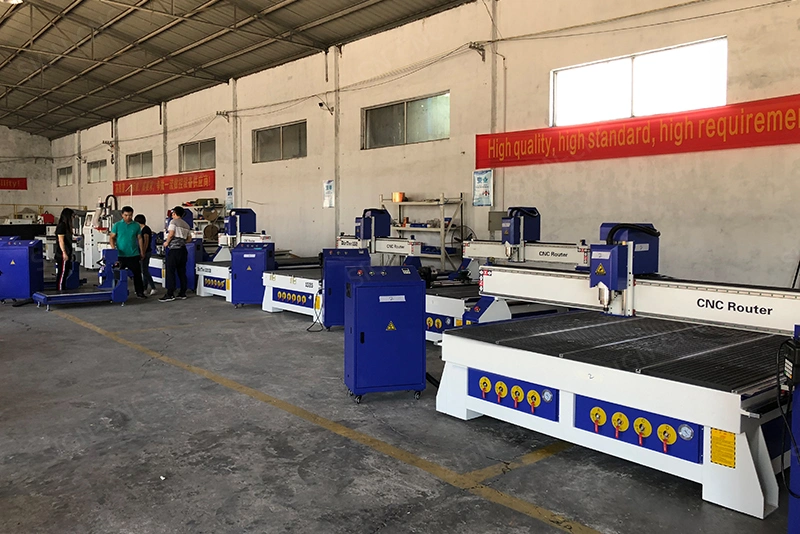

5. About Our Company
We have a strong professional technical team to provide the best products.
We have experienced managers with the most perfect price system integration schemes for our customers.
Established business partner with many customers from Russia, Ukraine, U.S., Japan, South Korea, Canada, Italy, Turkey, Iran, Iraq, Egypt, Brazil, Pakistan etc. more than 50 countries.
We have been experienced in exporting the CNC machine for over 7 years, familiar with the different requirements from all kinds lines.
Meanwhile, we insist the principle of "the best products, the most reasonable price, the maximum benefits for customers", there are prestigious fame in the industry business field.
All response and suggestion from you, we promise to give you a satisfactory reply in 12 hours.
6. Contact With US by whatsapp wechat skype or email address for more machine details and prices
