SIGN-1325 CNC Router Descriptions

Adopt constant power water-cooled frequency spindle, high speed, low noise and long life.Cheap cost is very suitable for CNC hobby friends, small engraving shop and factories as well. Popularmach3 control system is very easy for every buyer and beginner. Aluminum casting structure won't transform after long use.Especially for metal engraving.



Machine Features

1. whole body is 2 parts ,ensure the high strength of machine . bracket is stainless steel pipe. Whole lathe bed and gantry are whole casting aluminum (whole casting iron is optional)

2. XYZ axis adopt linear square guide rail (Taiwan HIWIN or PMI, diameter 20mm)smooth operation, high precision, long life

3. Adopt Ncstudio control, support win7/xp/2000. control system is Richauto A11S, 512MB.

DSP and Mach3 control system is optional.

4. stainless steel water slot cooling system help cool tools when working, avoide breaking tool, sticking material.

5. Adopt 3.2 KW water cooling spindle, big power suitable for engraving and cutting.  ER20, support tool diameter 3.175mm,4mm,6mm,8mm,10mm,12.7mm.

6. The machine is good at in processing all kinds of small workpiece ,widely used in advertising signs, badges, logo, mould construction equipment, mould products, industrial mold, applicable materials are acrylic, double color boards, PCB, copper, aluminum, etc

7. Adopt Artcam 2008 or Artcam 7.0 tool path design software.  Compatible with Type3, ucancam, AutoCAD and so on.

8.Working table moving makes sure machine high accuracy.

9.XY adopt dustproof cloth to make machine maintainess easy

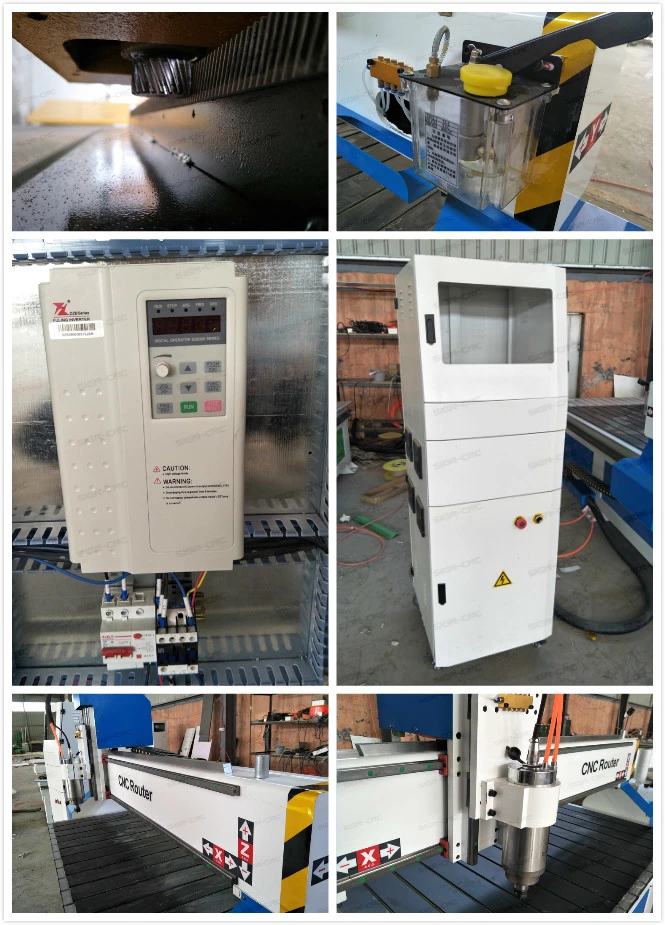

Machine main parts
3D CNC Wood Carving Machine/CNC Router Wood/CNC Wood Router 1300*2500mm



Technical Parameters

NO.

Model

SIGN-1325

1

X,Y,Z Working Area

1300*2500*200mm

2

XYZ  Positional Accuracy

±0.03/300mm

3

XYZ Repeatiblity Accuracy

±0.05mm

4

Lathe Structure

Cast Aluminum lathe bed

5

X, Y, ZStructure

Taiwan Hwin Round Guide Rail

6

Transmission

Original TBI Ball Screw

7

Table Surface

T slot with PVC + aluminum extrusions

8

Gantry Structure

Cast Aluminum Gantry

9

Max. Speed

0-6000mm/min

10

Max. Working Speed

0-3000mm/min

11

Spindle Power Motor

3. 2kw

12

Spindle Speed

0-24000RPM

13

Drive Mode

Leadshine Stepper Motor

14

Working Voltage

AC220V/380V, 50/60Hz

15

Command

G code, *uoo, *mmg, *plt

16

Operating System

NC Studio System or DSP System or Marh3 CNC

17

Interface

USB/Internet Line

18

Collet and Tools

ER11, φ3.175, φ6

19

X,Y Working Delicacy

<0.01mm


Samples

3D CNC Wood Carving Machine/CNC Router Wood/CNC Wood Router 1300*2500mm

Company information

     Jinan Sign CNC Equipment Co., Ltd. locates in beautiful city of Jinan. It's a high-tech enterprise, engaged in research and development, production, sales in the integration of motion control system integration, mechanical and electrical integration products.

     Our products lnclude: advertising CNC router, woodworking CNC router, stone CNC router, embossment CNC router, CNC Laser engraving machine, CNC Laser cutting bed, CNC Laser marking machine, CNC Plasma cutting machine, cutting plotter and mould machine.

     Our productions are widely used in advertising, gifts, electronic appliances, furniture manufacturing, organic glass, packaging and printing, all kinds of non-metal processing and cutting etc industry.

     We have a strong professional technical team to provide the best products and have experienced managers with the most perfect price system integration schemes for our customers. We have been established business partner with many customers from Russia, Ukraine, U.S., Japan, South Korea, Canada, Italy, Turkey, Iran, Iraq, Egypt, Brazil, Pakistan etc. more than 50 countries.

      We have been experienced in exporting the CNC machine for over 5 years, familiar with the different requirements from all kinds lines. Meanwhile, we insist the principle of "the best products, the most reasonable price, the maximum benefits for customers", there are prestigious fame in the industry business field.
