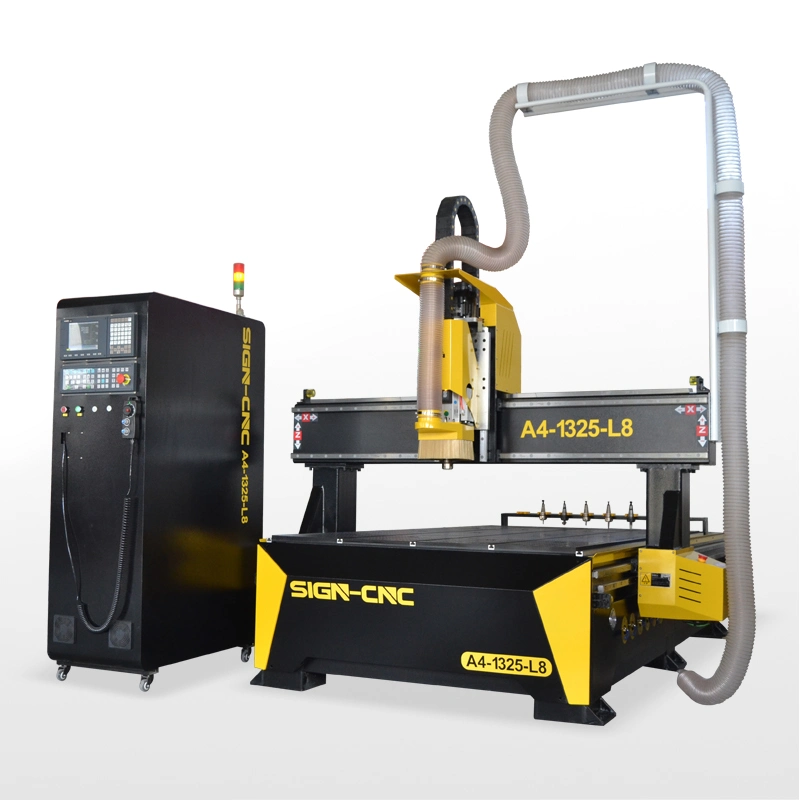

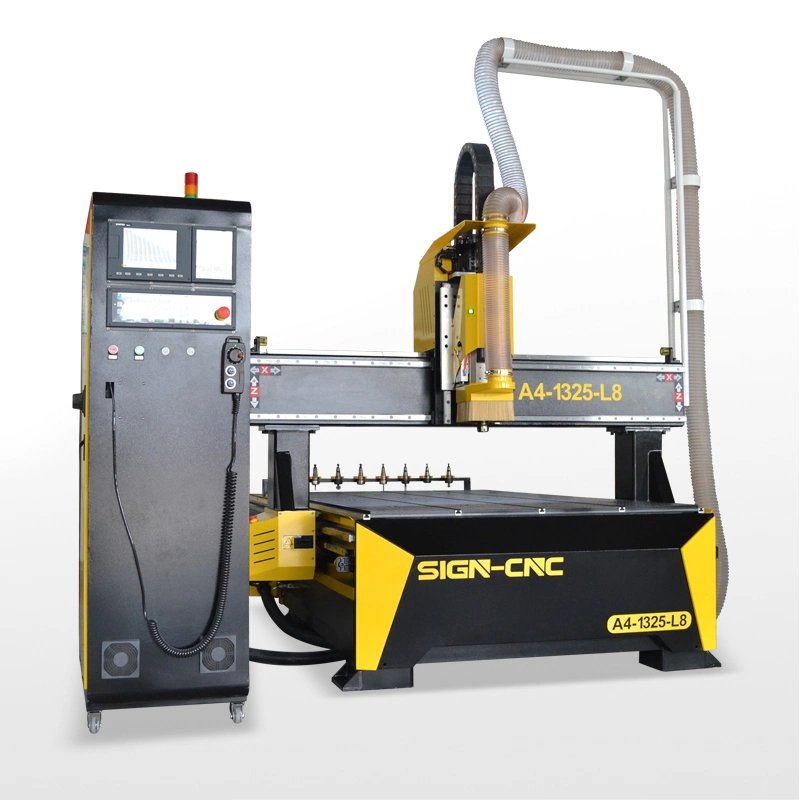

                               A4-1325-L8 CNC Router ATC
Atc CNC Router High Precision Machine Wood Machine for Wood Foam CuttingAtc CNC Router High Precision Machine Wood Machine for Wood Foam Cutting
Specification
Model
A4-1325-L8
X, Y Working size
1300x2500
Z feed Height
300mm
Table Surface
Vacuum and T-slot table
X, Y Structure
Rack and Pinion Drive, TBI Linear Square Guide Rail
Z Structure
20mm Linear Square Guide Rail and Ball Screw
Max. Power Consumption
(Without spindle) 2.0Kw
Max. Rapid Travel Rate
33000mm/min
Max. Working Speed
25000mm/min
Spindle Power
9.0KW ATC spindle
Spindle Speed
0-24000RPM
Drive Motors
Syntec 1000W servo motor and driver
Working Voltage:
220/380V/50/60Hz
Command Language
G code
Control System
  Syntec 60WE
X,Y,Z repositioning Accuracy
±0.01mm
X,Y Resolution
<0.01mm
Software
Artcam
Running Temperature
0 degree - 45 degree
Relative Humidity
30% - 75%
Optional Parts
4 AXIS
loading and unloading table

Atc CNC Router High Precision Machine Wood Machine for Wood Foam CuttingAtc CNC Router High Precision Machine Wood Machine for Wood Foam CuttingAtc CNC Router High Precision Machine Wood Machine for Wood Foam CuttingAtc CNC Router High Precision Machine Wood Machine for Wood Foam Cutting
Atc CNC Router High Precision Machine Wood Machine for Wood Foam CuttingAtc CNC Router High Precision Machine Wood Machine for Wood Foam CuttingAtc CNC Router High Precision Machine Wood Machine for Wood Foam CuttingAtc CNC Router High Precision Machine Wood Machine for Wood Foam CuttingAtc CNC Router High Precision Machine Wood Machine for Wood Foam Cutting
FAQ
1. How can I run it ?
Send you the operation video and English instruction for use.
We provide free technical support
2. What else I need except the machine?
computer for design drawing ,ATC machine use air compressor
3.What is the warranty?
2 years.
4. What is your payment?
T/T 30% deposit ,70% before shipping.
L/C at sight ,Alibaba Secure payment.
