CNC Engraving Machine CNC Woodworking Engraving Machine CNC Machine Tool 1325 Air-cooled Spindle CNC Engraving Machine Dspworking Worktable Size 1300X2500

Application fieldsCNC Wood Routers are used for woodworking such as hollow wood caving, relief wood carving, plane wood carving, 3D wood carving, Furniture production, etc.1. engaged in arts, gifts, crafts, signs, marks, logos, moulds, models, boxes, etc. for advertising, home using or school teaching, .2. wood production, such

Featured Products

Application fields
CNC Wood Routers are used for woodworking such as hollow wood caving, relief wood carving, plane wood carving, 3D wood carving, Furniture production, etc.
1. engaged in arts, gifts, crafts, signs, marks, logos, moulds, models, boxes, etc. for advertising, home using or school teaching, .
2. wood production, such as solid wood door, Craft wood door, MDF door, screens, windows, table and chairs, Cabinet, Room decoration, etc.
3.some woodworking works like customized panel furniture production, we also have Intelligent CNC Routers with auto nesting software, it has full functions of automatically uploading and downloading, automatically nesting, labeling, optimizing, vertical drilling, slotting, grooving, cutting, carving and engraving, etc.
4. This machine is perfect for 3d engraving and flat objects at the same time. it is widely used in 3D carved plates with wave patterns, cabinet door, solid wooden door, craft wooden door, non-painting wooden door, screen, craft windows, computer desk and the panel furniture auxiliary processing etc.
5. Suitable for woodworking, stone, soft metal, plastic, PPE, PPR, advertising and other industries


PS: All the working area and specifications can be customized according to your requests.

Router CNC Wood Router CNC Machine 1325 Air Cooling Spindle CNC Engraver Dspworking Table Size 1300X2500
Router CNC Wood Router CNC Machine 1325 Air Cooling Spindle CNC Engraver Dspworking Table Size 1300X2500

Router CNC Wood Router CNC Machine 1325 Air Cooling Spindle CNC Engraver Dspworking Table Size 1300X2500

Features:

1. Simple operation and installation, when delivery we will provide the videos for training.

2. More steady and strong equipped bed structure with thick steel.

3. Equipped with air cooling spindle, can be optional water cooling spindle, more powerful, enough to cut more thickness materials.

4.The manual oiling lubricating system, just pushing the handle then can realize the whole machine oiling, very convenient.

5. Dust collector, helping to suck the dust, milling dust, keeping the machine clean.

6. Ncstudio control system, can be optional DSP control system.

7.Taiwan HIWIN square guide rail, high precision and long life time, rack and pinion transmission, high speed.

8. Vacuum adsorption table with 5.5KW vacuum pump, it can adsorb the materials on the table , more stable when engraving wood doors.

9.Function of re-carving after break point and power off, reducing the materials wasting.

10.Good software compatibility, all kinds of CAD/CAM ,such as Typ3 , ArtCam, Castmate, UcanCam,Artcut engraving software, Coredraw, etc.


ModelRT-1325
X*Y* Z Working size1300*2500*200~300mm
Feeding heightCan be 200~300mm,following order
Idling Speed15m/min
Working Speed10m/min
Repositioning Accuracy<0.01mm
Spindle Running Speed0~24000rpm
Machine body and working tableSteel structure lathe bed, T-slot table of sectional material
Optional is vacuum adsorption table,body steel thickness is 3.5mm, 4.5mm, 6mm, 8mm, 10mm, 12mm
Work holdingBy clamps
Optional is by vacuum


Transmission system
      XHAWIN Square rail,helical rack and pinion
YHAWIN Square rail,helical rack and pinion
ZHAWIN square rail on Z,Germany Imported double-net ball screw

Spindle

Power 3.0 KW water cooling spindle
optional is air-cooling,  4.5kw, 6.0kw,7.5kw,9.0kw...
InverterFuling
Collet diameterØ3.175-Ø12.7mm
Drive  system

Stepper motor,Leadshine driver 860,
 optional is servo motor

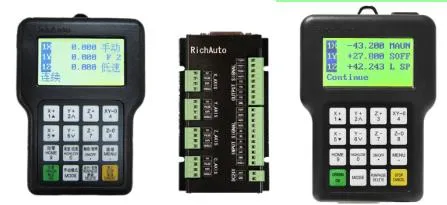

Control SystemNcstudio card,
optional is DSP A11, March 3,
Oiling systemAutomatic
Working VoltageAC380V±30V, 50HZ
Optional is 220V, 410V,
Command CodeG Code, (*.nc*.mmg, *.u00,etc), *.eng
running environment temperature0 degree ~45 degree
relative humidity30~75%
Working SoftwareWindows98/xp/7
Compatible SoftwareType3/Artcam/UcancamV9/Castmate/corelerow/Autocad/JDpaint
Rotary without,     but can be ordered.
Dust collectorWithout,     but can be ordered
total weight 1000kg, 1200kg, 1300kg, 1600kg

Router CNC Wood Router CNC Machine 1325 Air Cooling Spindle CNC Engraver Dspworking Table Size 1300X2500Router CNC Wood Router CNC Machine 1325 Air Cooling Spindle CNC Engraver Dspworking Table Size 1300X2500Router CNC Wood Router CNC Machine 1325 Air Cooling Spindle CNC Engraver Dspworking Table Size 1300X2500Router CNC Wood Router CNC Machine 1325 Air Cooling Spindle CNC Engraver Dspworking Table Size 1300X2500
Router CNC Wood Router CNC Machine 1325 Air Cooling Spindle CNC Engraver Dspworking Table Size 1300X2500
pls notice
we can make the machine as split type, so that it can reduce volume ,and save 70%  freight !\


 Optional Parts

1.1 Oil/Water Mist Cooling Sprayer
It is suitable for cutting or engraving soft-metal (like aluminum and cooper), stone(marble) etc material, has cooling effect.

1.2 Spindle cover and Dust collector

They are designed for human operation protection and promise clean table surface, save maintenance time for you.

1.3 Pump

We can provide vacuum pump or water circulation pump for your choice.

1.4 Rotary Device
It can engrave cylindrical object.
The rotary device's diameter, length and position can be customized according to your requests.




Router CNC Wood Router CNC Machine 1325 Air Cooling Spindle CNC Engraver Dspworking Table Size 1300X2500
Router CNC Wood Router CNC Machine 1325 Air Cooling Spindle CNC Engraver Dspworking Table Size 1300X2500

sample
Router CNC Wood Router CNC Machine 1325 Air Cooling Spindle CNC Engraver Dspworking Table Size 1300X2500
