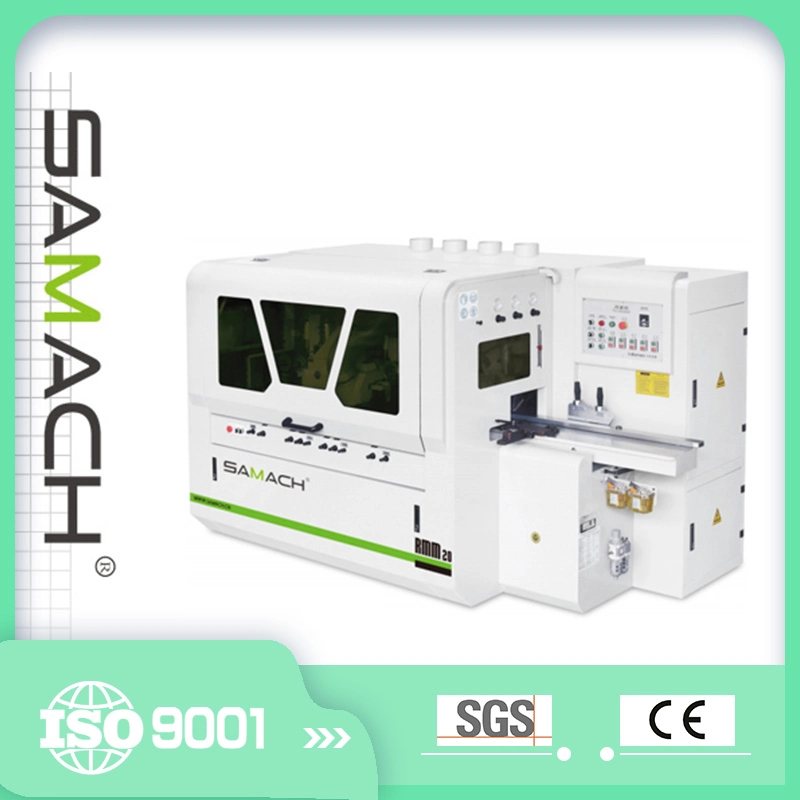

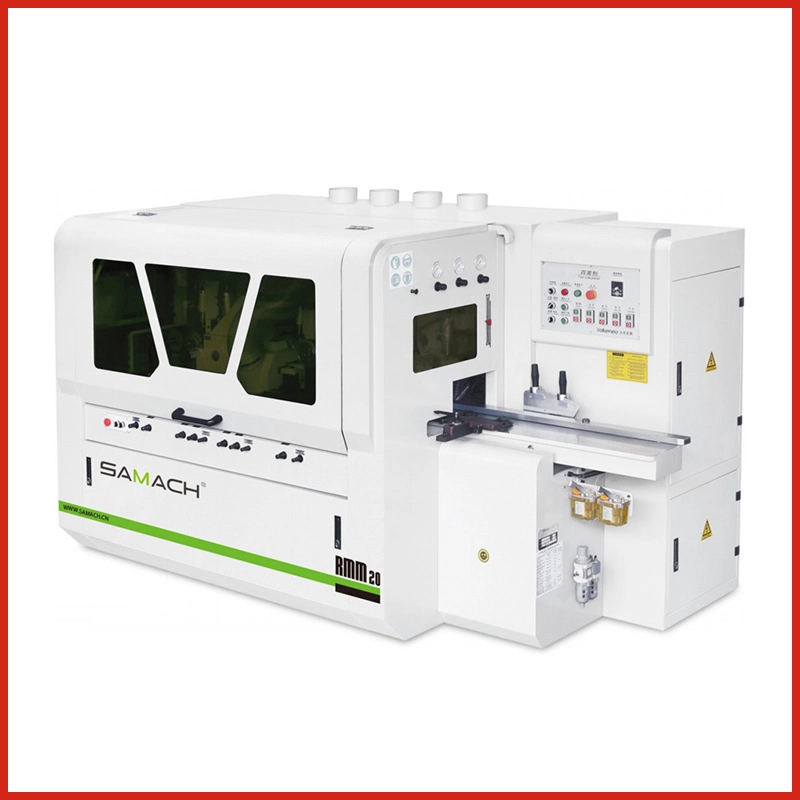

Four side moulder RMB413D/418D/518DS/618D/621D/623D
Four side moulder Various model parameters
Product Features introduction:
1. The flat tooth type steel roller with special treatment will durable in use.
2. There are sections for adjusting pressure according to the machine which could ensure feeding smoothly.
3. Machine with cardan joint drive infeed which is high efficiency and make the lifespan longer
FAQ:
1. How to make an order?
You can Email us your details, and we will contact you immediately and help you proceed with the
orders.
2. Can you offer special discounts to the wholesaler or we make big quantity?
Yes, we will give you best support according to your quantity, and will arrange some promotion products every month.
3. What is your delivery time?
Normally, we can finish one order at about 25-30days, but the exact time depends on different styles and different quantities you.
4. Can you arrange the shipment by door to door?
We can offer door to door service both by sea and by air, which can save your time and money. Also, we have cooperated forwarder
in some countries and can arrange the customs clearance for you.
5. Do I have to assemble all items by myself or by my customer himself?
Our packing will be two different ways according to different products. Some are used the KD packing (for some little spare
parts), and others need to be assembled, But it is so easy to assemble with the user manual or video teaching.
6. What's your warranty?
We normally will provide one years warranties. If the product is caused by factory mistakes, We will give you free replacement for
the spare parts. If it was damaged during the shipping or other reasons, we will provide the best solutions for you.
7. What payment do you accept?
Normally we can provide TT, LC, PAYPAL, ESCROW, WESTERN UNION ect. Any other ideas, please contact us for better support.
Samach'S Service and dominants:
1: Professional team of techniques study and research, guarantee the Machine latest and improving efficiency.
2.Knowing China and world markets well, offer professional soluttions.
3.Fast market reaction, guarantee our partners always in front edge.
4.Supeiror Guarantees,quality of our machine and sell-after service.
5.OEM/ODM are available.
6.Principle: One cooperation, forever partners.
Contact us and Enjoy our Happy Coopperation Together. Thank you for your time ^_^ !
Four side moulder Various model parameters
| Models | RMB413D | RMB418D | RMB518DX |
| Working width(mm) | 15-130 | 15-180 | 15-180 |
| Working thickness(mm) | 8-100 | 8-130 | 8-130 |
| Min working length(Intermittent /continuous)(mm) | 580/300 | 580/300 | 580/300 |
| Main shaft diameter(mm) | Φ40 | Φ40 | Φ40 |
| Feeding speed(m/min) | 5-40 | 5-40 | 5-40 |
| Main spindle speed(m/min) | 7000 | 7000 | 7000 |
| Left and right vertical shaft(mm) | Φ110-Φ170 | Φ110-Φ170 | Φ110-Φ170 |
| 1st upper shaft(mm) | Φ125-Φ160 | Φ125-Φ160 | Φ125-Φ160 |
| 2nd lower shaft(mm) | - | - | Φ125-Φ180 |
| Totaol motor power | 18.75KW | 24.25KW | 30.75KW |
| 1st lower shaft | 3KW | 4KW | 4KW |
| Left and right vertical shaft | 4KW | 5.5KW | 5.5KW |
| 1st upper shaft | 4KW | 5.5KW | 5.5KW |
| 2nd lower shaft | - | - | 5.5KW/7.5KW |
| Feeding motor | 3KW | 3KW | 4KW |
| Beam motor | 0.75KW | 1.5KW | 0.75KW |
| Pneumatic source pressure(Mpa) | 0.6 | 0.6 | 0.6 |
| Dust outlet diameter(mm) | 4*-Φ150 | 4*-Φ150 | 5*-Φ150 |
| Ovreall size(mm) | 3150*1380*1660 | 3150*1550*1800 | 3150*1550*1800 |
| Weight(kg) | 2100 | 2700 | 2900 |
| Models | RMB518DS | RMB618D | RMB621D | RMB623D |
| Working width(mm) | 15-180 | 15-180 | 15-210 | 15-230 |
| Working thickness(mm) | 8-130 | 8-130 | 8-130 | 8-160 |
| Min working length(Intermittent /continuous)(mm) | 580/300 | 580/300 | 580/300 | 580/300 |
| Main shaft diameter(mm) | Φ40 | Φ40 | Φ40 | Φ40 |
| Feeding speed(m/min) | 5-40 | 8-40 | 8-40 | 8-40 |
| Main spindle speed(m/min) | 7000 | 7000 | 7000 | 7000 |
| Left and right vertical shaft(mm) | Φ110-Φ170 | Φ110-Φ170 | Φ110-Φ170 | Φ110-Φ170 |
| 1st upper shaft(mm) | Φ125-Φ160 | Φ125-Φ160 | Φ125-Φ160 | Φ125-Φ160 |
| 2nd upper shaft(mm) | Φ125-Φ160 | Φ125-Φ160 | Φ125-Φ160 | Φ125-Φ160 |
| 2nd lower shaft(mm) | - | Φ125-Φ180 | Φ125-Φ180 | Φ125-Φ180 |
| Total motor power | 30.75KW/32.75KW | 40.25KW | 43.75KW | 54.75 |
| 1st lower shaft | 4KW | 4KW | 5.5KW | 7.5KW |
| Left and right vertical shaft | 5.5KW | 5.5KW | 5.5KW | 7.5KW |
| 1st upper shaft | 5.5KW | 7.5KW | 7.5KW | 11KW |
| 2nd upper shaft | 5.5KW/7.5KW | 5.5KW | 7.5KW | 7.5KW |
| 2nd lower shaft | - | 7.5KW | 7.5KW | 7.5KW |
| Feeding motor | 4KW | 4KW | 4KW | 5.5KW |
| Beam motor | 0.75KW | 0.75KW | 0.75KW | 0.75KW |
| Pneumatic source pressure(Mpa) | 0.6 | 0.6 | 0.6 | 0.6 |
| Dust outlet diameter(mm) | 5pc-Φ150 | 6pc-Φ150 | 6pc-Φ150 | 6pc-Φ150 |
| Overall size(mm) | 3680*1550*1800 | 3680*1550*1800 | 3680*1660*1860 | 3680*1660*1860 |
| Weight(kg) | 3200 | 3400 | 3700 | 4000 |
1. The flat tooth type steel roller with special treatment will durable in use.
2. There are sections for adjusting pressure according to the machine which could ensure feeding smoothly.
3. Machine with cardan joint drive infeed which is high efficiency and make the lifespan longer
4.The imported oil pump could better protect and lubricate the machine tool.
5. The side infeed device which could ensure infeed smoothly.
6. The working table is hard chromium plated which will durable in use.
7. The rear work table is equipped with the active feeding wheel ensuring the smooth feeding.
8.High precision spindle motor which is great power to ensure the saw cutting will not get stuck.
9. The speed of feeding frequency is used to adjust to achieve convenient and fast effect.
10. The front work table is equipped with the active feeding wheel material feeding cutoff force.
11. Assembling with the imported electrical brand Schneider to provide the machine with new energy.
12. Heavy duty gear box and cardan shaft driven feeding system
13. The imported FRL is to ensure the air pressure is stable when pressing the material. The imported FRL is to ensure the air pressure is stable when pressing the material.
14. Optional: The groove working table is optional for irregular workpiece.
15.The short material feeding device is optional for the purpose of coovenienting high speed feeding for short workpiece
16. The pressing wheel mechanism for short boards, ensuring the smooth conveying of the short materials (Optional)
