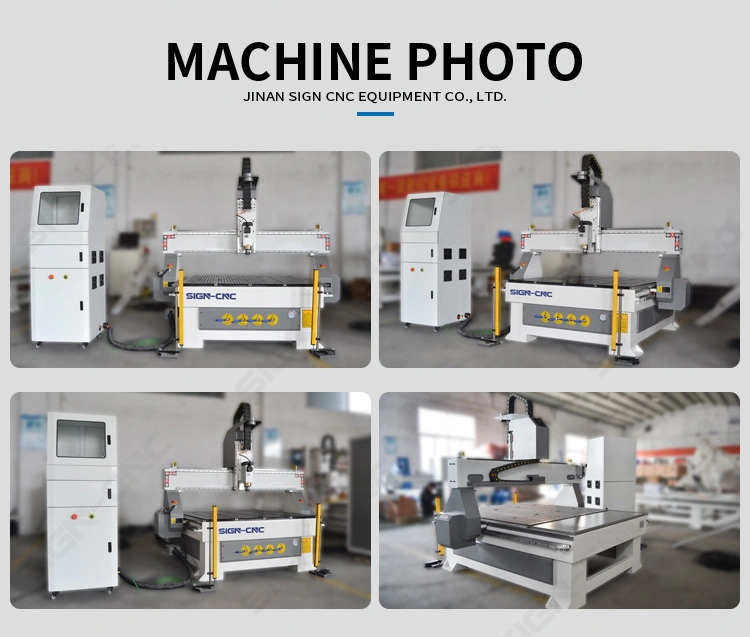

SIGN-1313 CNC Router Descriptions
Adopt constant power water-cooled frequency spindle, high speed, low noise and long life.Cheap cost is very suitable for CNC hobby friends, small engraving shop and factories as well. Popularmach3 control system is very easy for every buyer and beginner. Aluminum casting structure won't transform after long use.Especially for metal engraving.
1. whole body is 2 parts ,ensure the high strength of machine . bracket is stainless steel pipe. Whole lathe bed and gantry are whole casting aluminum (whole casting iron is optional)
2. XYZ axis adopt linear square guide rail (Taiwan HIWIN or PMI, diameter 20mm)smooth operation, high precision, long life

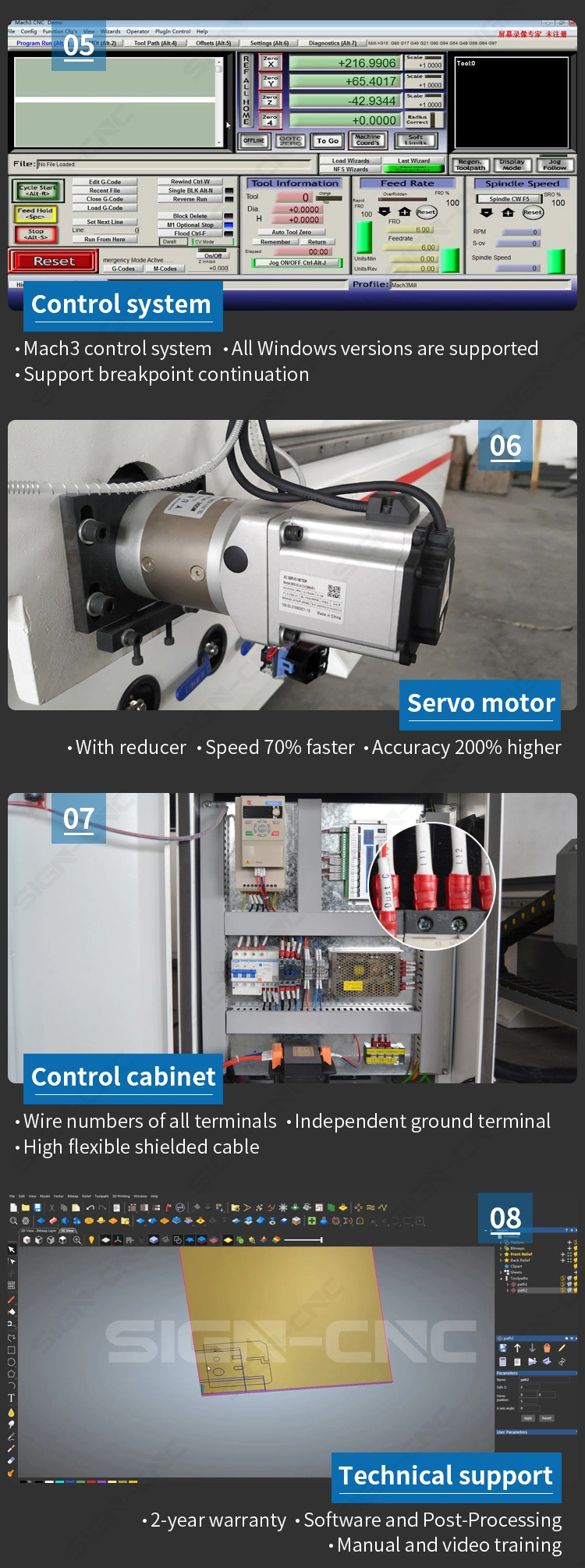

3. Adopt Ncstudio control, support win7/xp/2000. control system is Richauto A11S, 512MB.
DSP and Mach3 control system is optional.
4. stainless steel water slot cooling system help cool tools when working, avoide breaking tool, sticking material.
5. Adopt 3.2 KW water cooling spindle, big power suitable for engraving and cutting. ER20, support tool diameter 3.175mm,4mm,6mm,8mm,10mm,12.7mm.
6. The machine is good at in processing all kinds of small workpiece ,widely used in advertising signs, badges, logo, mould construction equipment, mould products, industrial mold, applicable materials are acrylic, double color boards, PCB, copper, aluminum, etc
7. Adopt Artcam 2008 or Artcam 7.0 tool path design software. Compatible with Type3, ucancam, AutoCAD and so on.
8.Working table moving makes sure machine high accuracy.
9.XY adopt dustproof cloth to make machine maintainess easy
X,Y,Z Working Area
XYZ Positional Accuracy
XYZ Repeatiblity Accuracy
Cast Aluminum lathe bed
X, Y, ZStructure
Taiwan Hwin Round Guide Rail
Original TBI Ball Screw
Cast Aluminum Gantry
Max. Working Speed
Spindle Power Motor
Leadshine Stepper Motor
G code, *uoo, *mmg, *plt
NC Studio System or DSP System or Marh3 CNC
Collet and Tools
ER11, φ3.175, φ6
X,Y Working Delicacy
Jinan Sign CNC Equipment Co., Ltd. locates in beautiful city of Jinan. It's a high-tech enterprise, engaged in research and development, production, sales in the integration of motion control system integration, mechanical and electrical integration products.
Our products lnclude: advertising CNC router, woodworking CNC router, stone CNC router, embossment CNC router, CNC Laser engraving machine, CNC Laser cutting bed, CNC Laser marking machine, CNC Plasma cutting machine, cutting plotter and mould machine.
We have been experienced in exporting the CNC machine for over 5 years, familiar with the different requirements from all kinds lines. Meanwhile, we insist the principle of "the best products, the most reasonable price, the maximum benefits for customers", there are prestigious fame in the industry business field.
